First Congregational Church, Nantucket, MA
Tower Restoration - Scanned Drawings
6/17/2007
| Item | Date | Notes |
| Drawings - Scanned - Ames & Graves Architects, Boston, MA | c1980 | 11 drawings - floor plans, sections, elevations, all undated. |
| date scanned | ID | Type | Description | Notes |
|---|---|---|---|---|

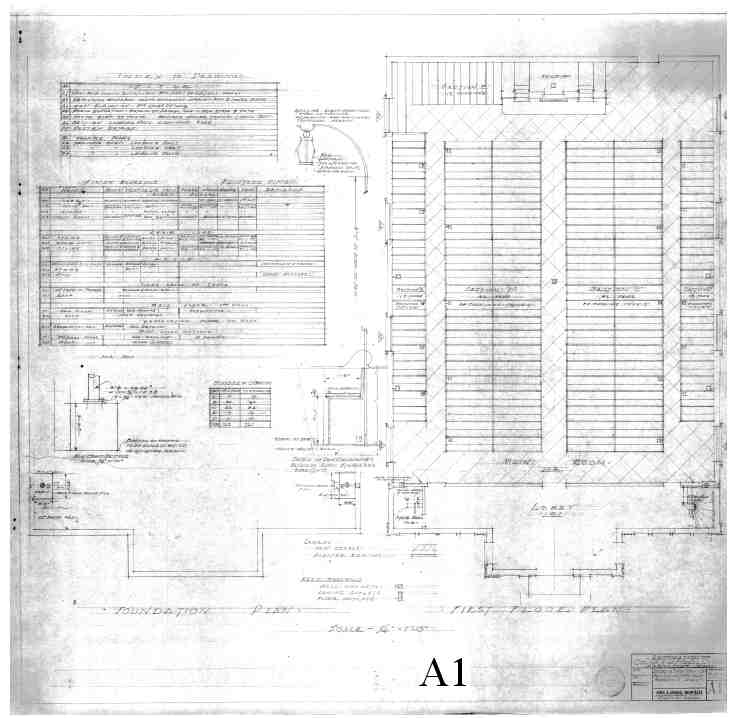

| 5/9/2007 | A1 | Plan | First Floor | |

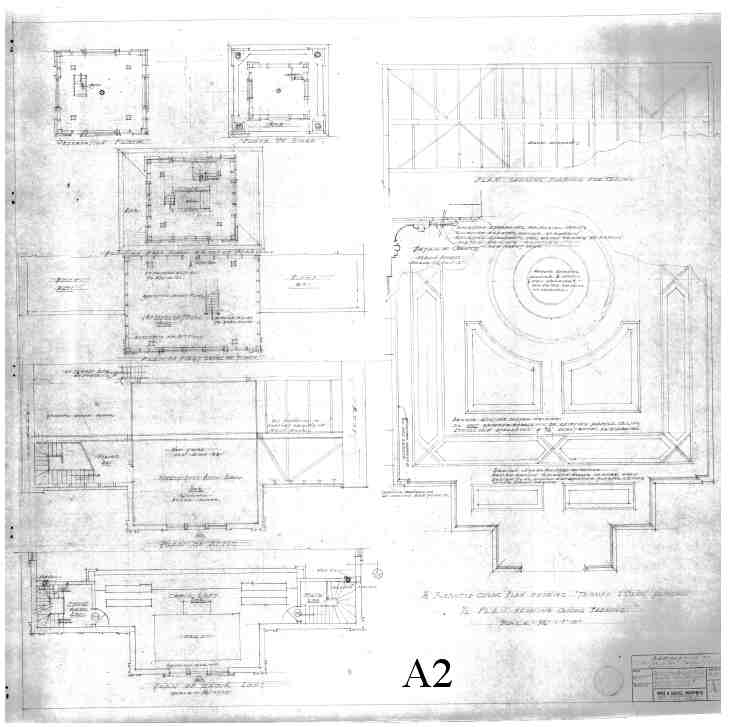

| 5/9/2007 | A2 | Plan | Reflected Ceiling, Upper floor plans | |

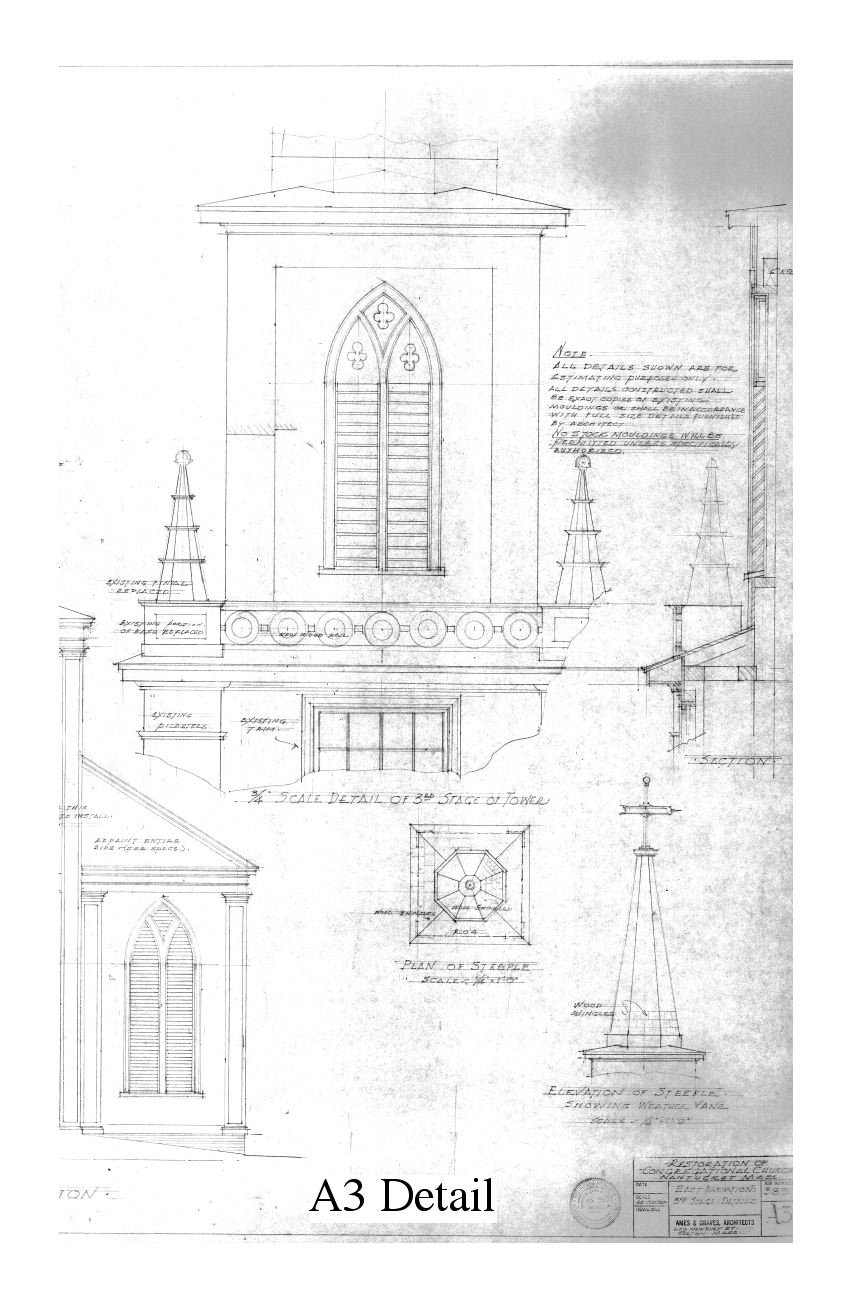

| 5/9/2007 | A3Detail | Elevation | East Elevation Detail | |

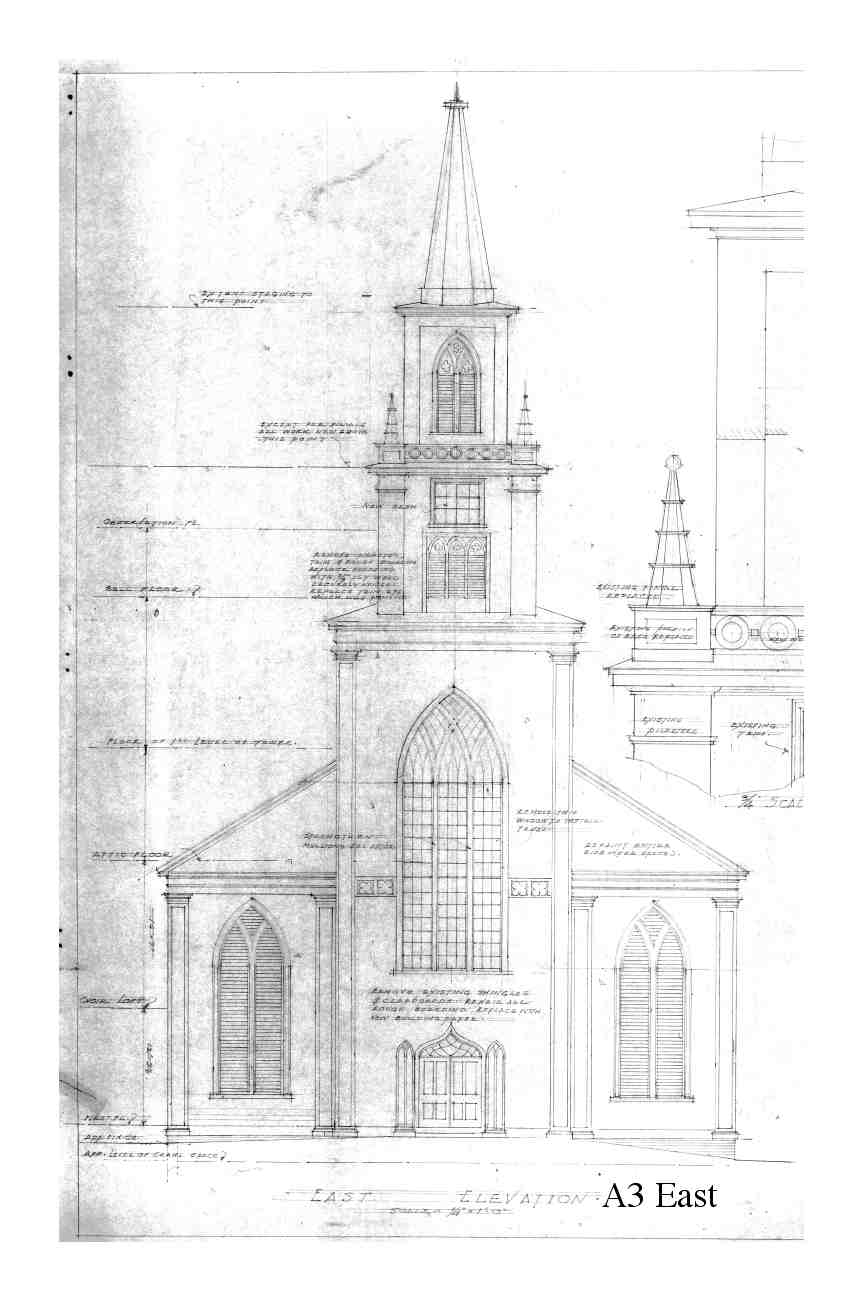

| 5/9/2007 | A3East | Elevation | East Elevation only | |

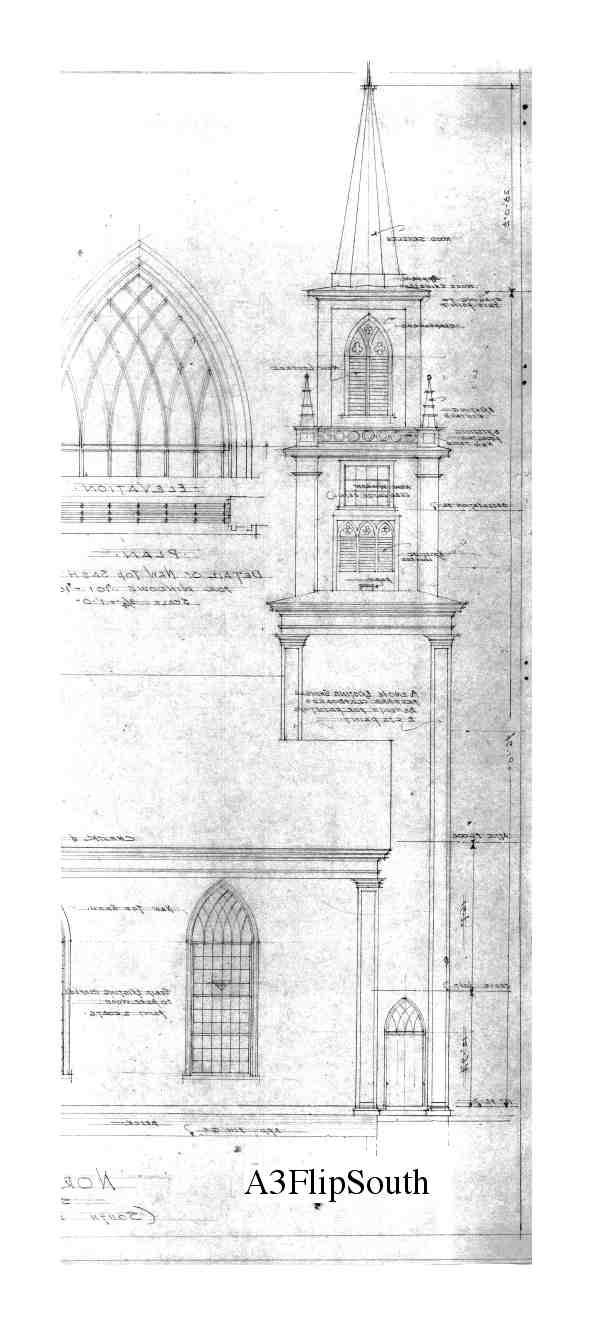

| 5/9/2007 | A4aSouth | Elevation | South (North flipped) | |

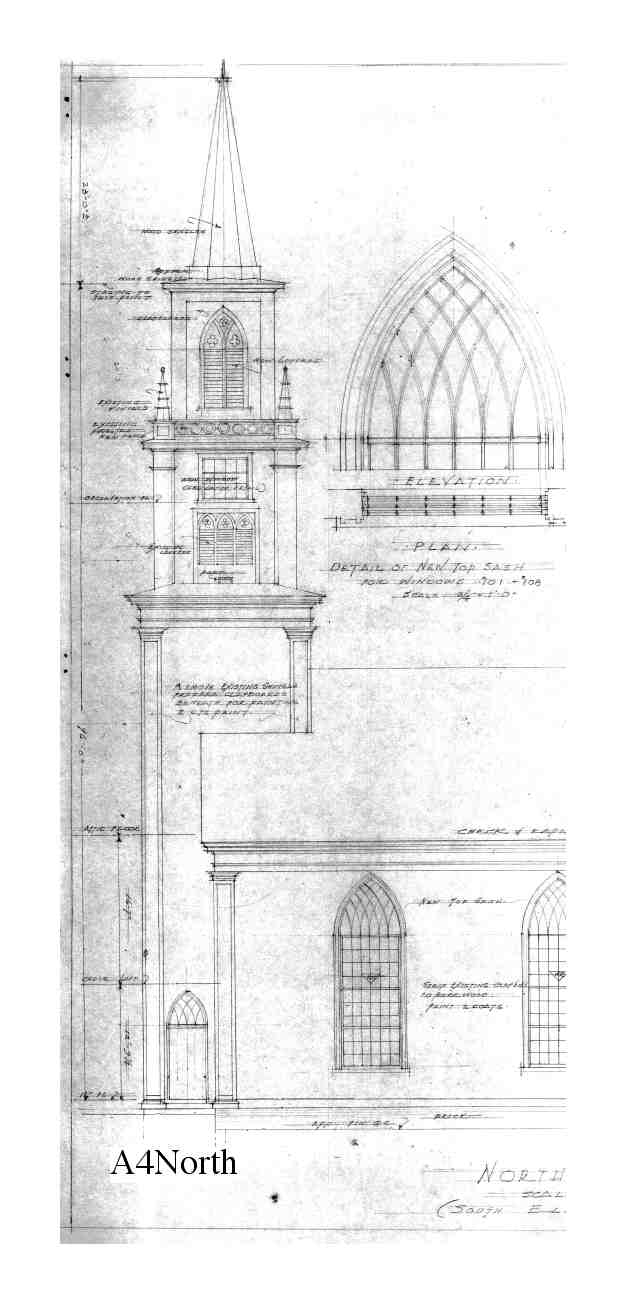

| 5/9/2007 | A4North | Elevation | North | |

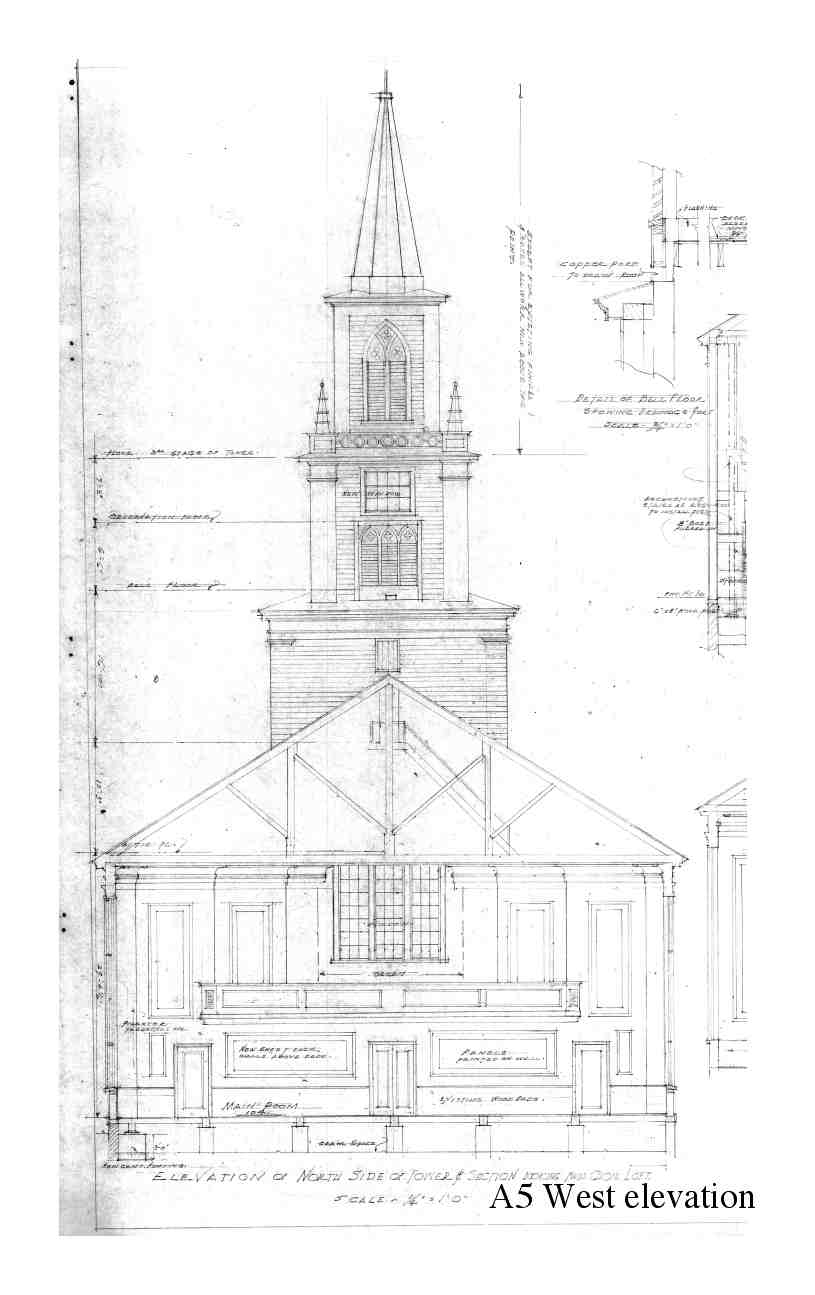

| 5/9/2007 | A5West | Elevation | Elevation of west tower | |

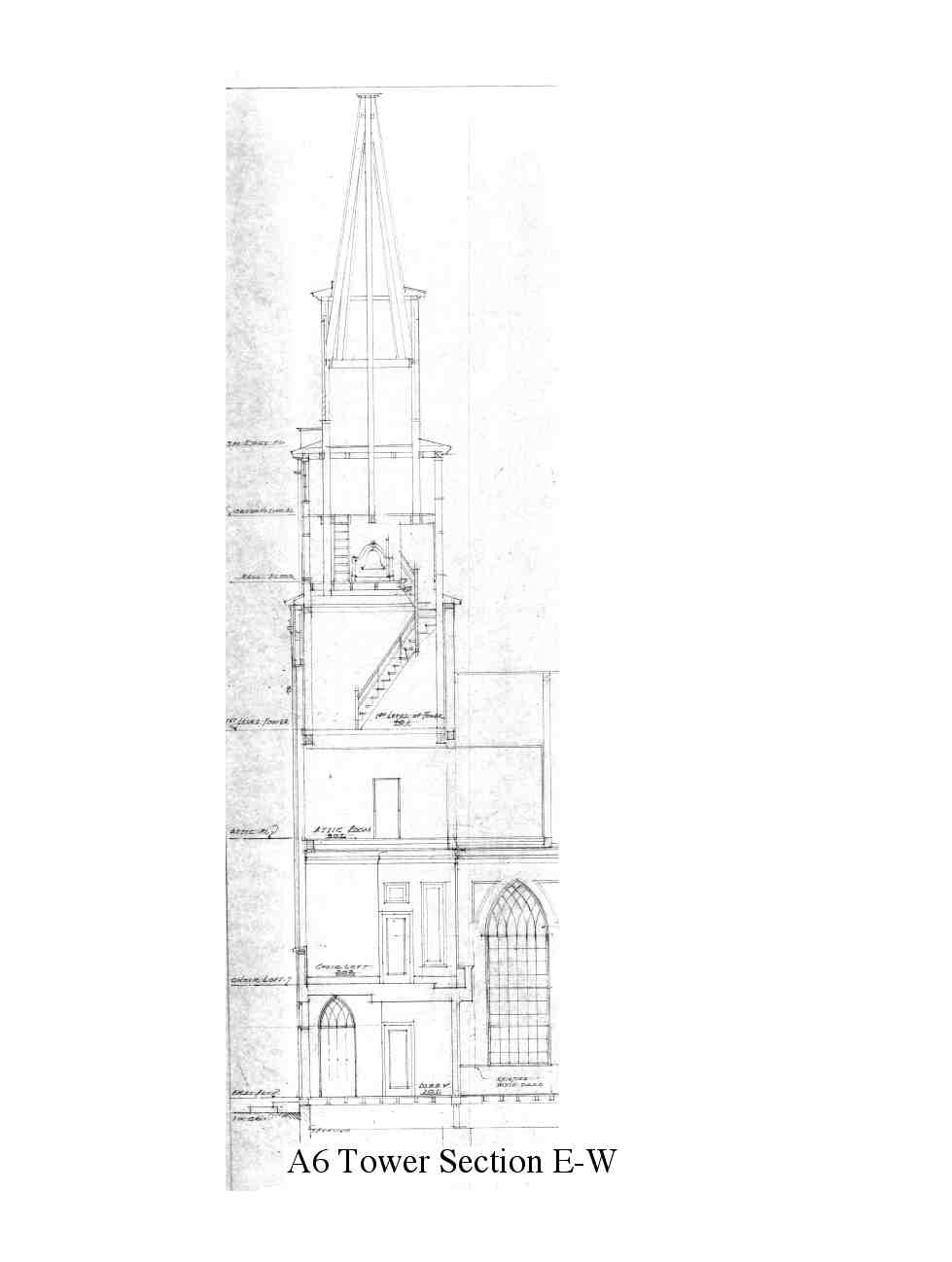

| 5/9/2007 | A6EWSection | Section | E-W Section through tower and sanctuary | |

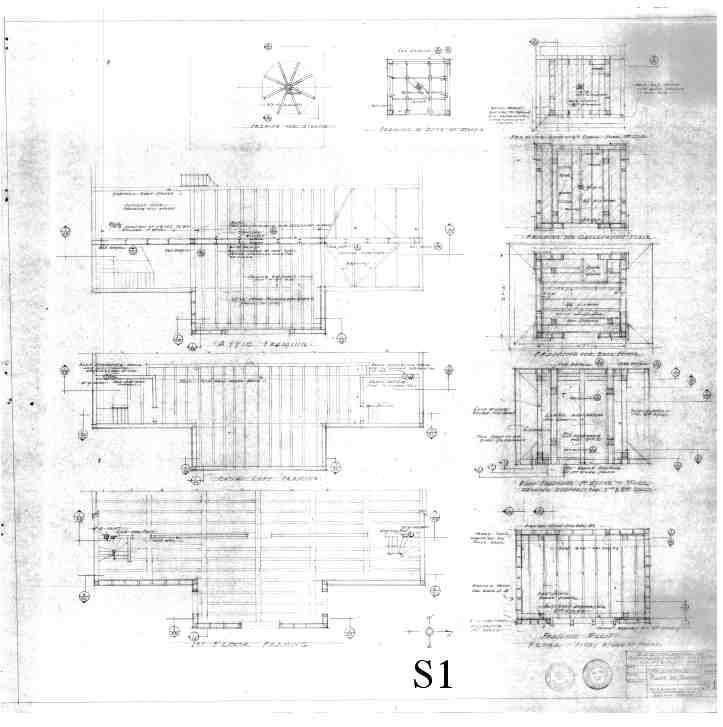

| 5/9/2007 | S1 | Plan | Structural Framing | |

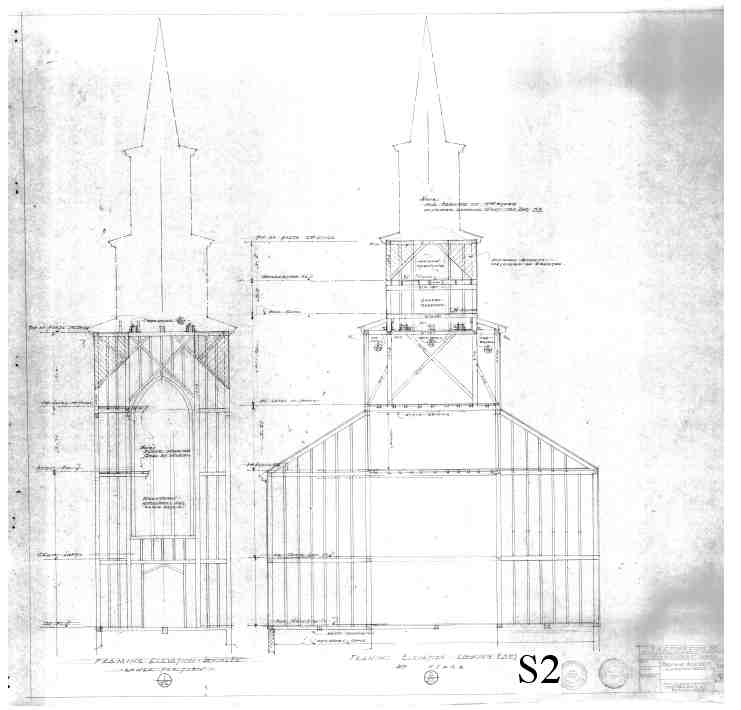

| 5/9/2007 | S2 | Section | Structural Framing Elevations | |

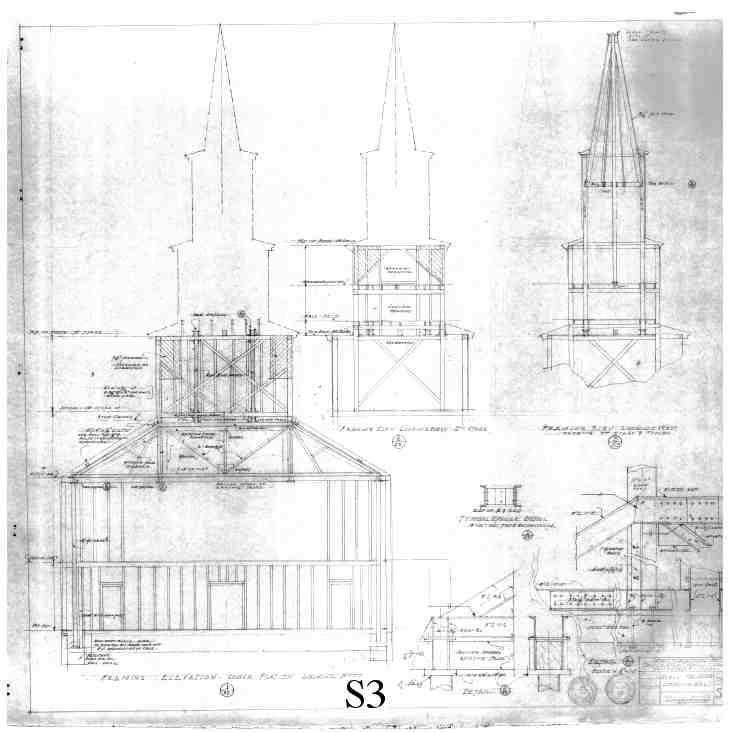

| 5/9/2007 | S3 | Section | Structural Framing Elevations Looking West | |

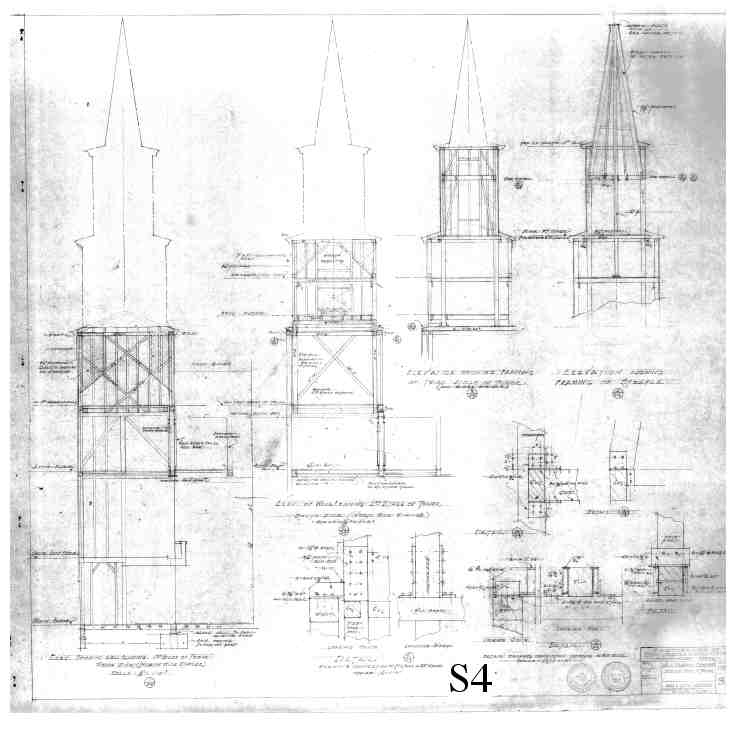

| 5/9/2007 | S4 | Section | Structural Framing Upper tower |
